CURT 55318 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chevrolet S10 Blazer, GMC S15 Jimmy

---

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy S10 Blazer and GMC S15 Jimmy (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.

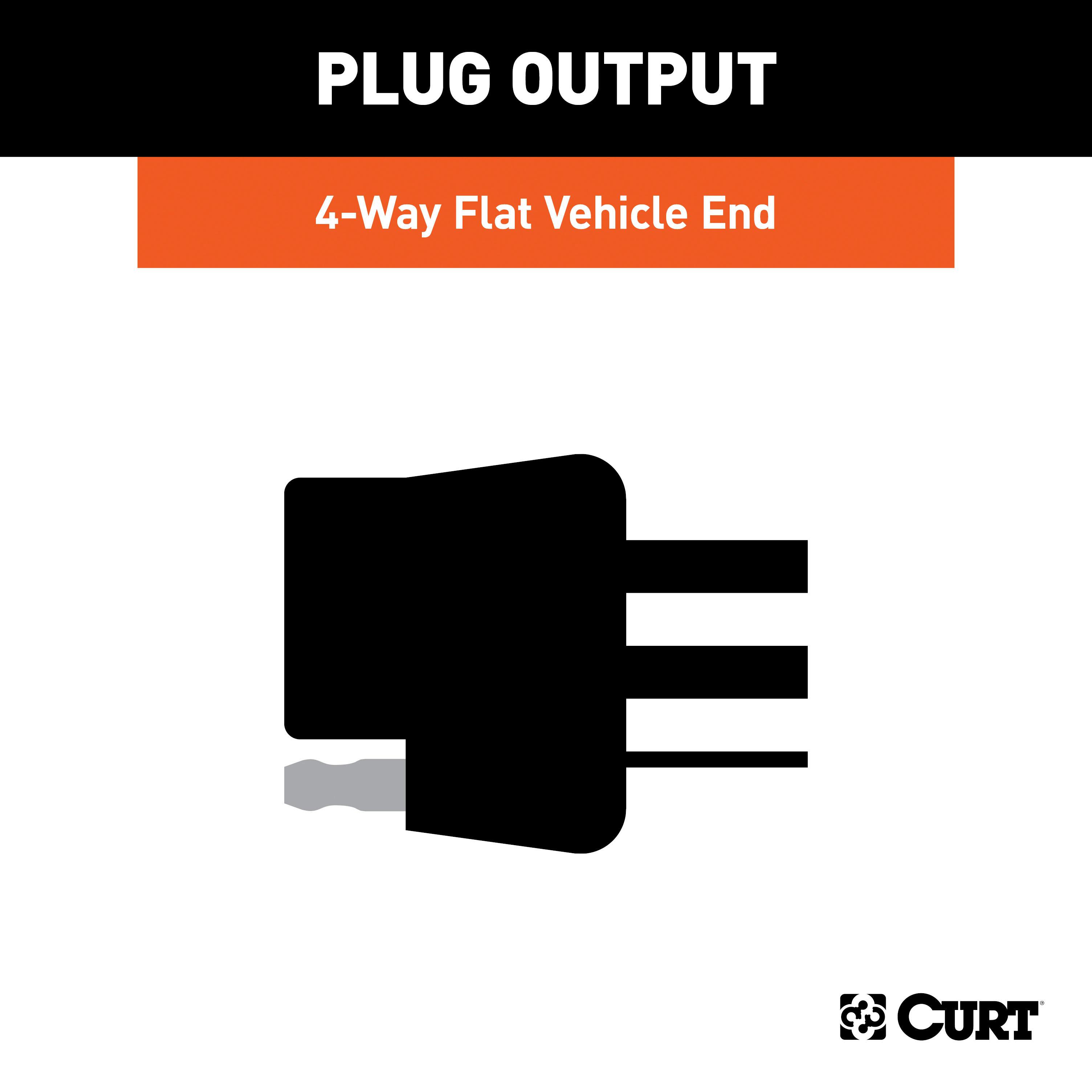

• Plugs Into Tail Light Assembly To Provide A 4-Way Flat Socket
• Simple Plug-And-Play Design Eliminates The Need For Splicing
• 4-Way Flat Connects Tail Lights Brake Lights And Turn Signals
• Dust Cover Included To Keep Connector Clean When Not In Use
• Backed By A Limited One-Year Warranty
• Made In USA

---

Information:

Custom Wiring, 4-Way Flat Output, Select Chevrolet S10 Blazer, GMC S15 Jimmy; Plugs into vehicle tail light assembly to provide a 4-way flat socket; Simple plug-and-play design eliminates the need for cutting or splicing; 4-way flat output connects tail lights, brake lights and turn signals; Dust cover included to keep connector clean when not in use; Backed by a limited one-year warranty

---

Application Summary:

Year	Make/Model
1984-1991	Chevrolet S10 Blazer
1984-1991	GMC S15 Jimmy
